The Appropriate Filler Masterbatch Loading Rate for Different Plastic Applications

In the plastics industry, selecting the appropriate Filler Masterbatch ratio (CaCO₃ Filler) is a key factor that determines production efficiency, product quality, and material cost. Each plastic application — from packaging films and thermoforming sheets to pipes and non-woven fabrics — has specific mechanical and surface requirements. Therefore, the filler ratio must be adjusted accordingly to achieve optimal performance.

1️⃣ Filler Masterbatch – Balancing Cost and Performance

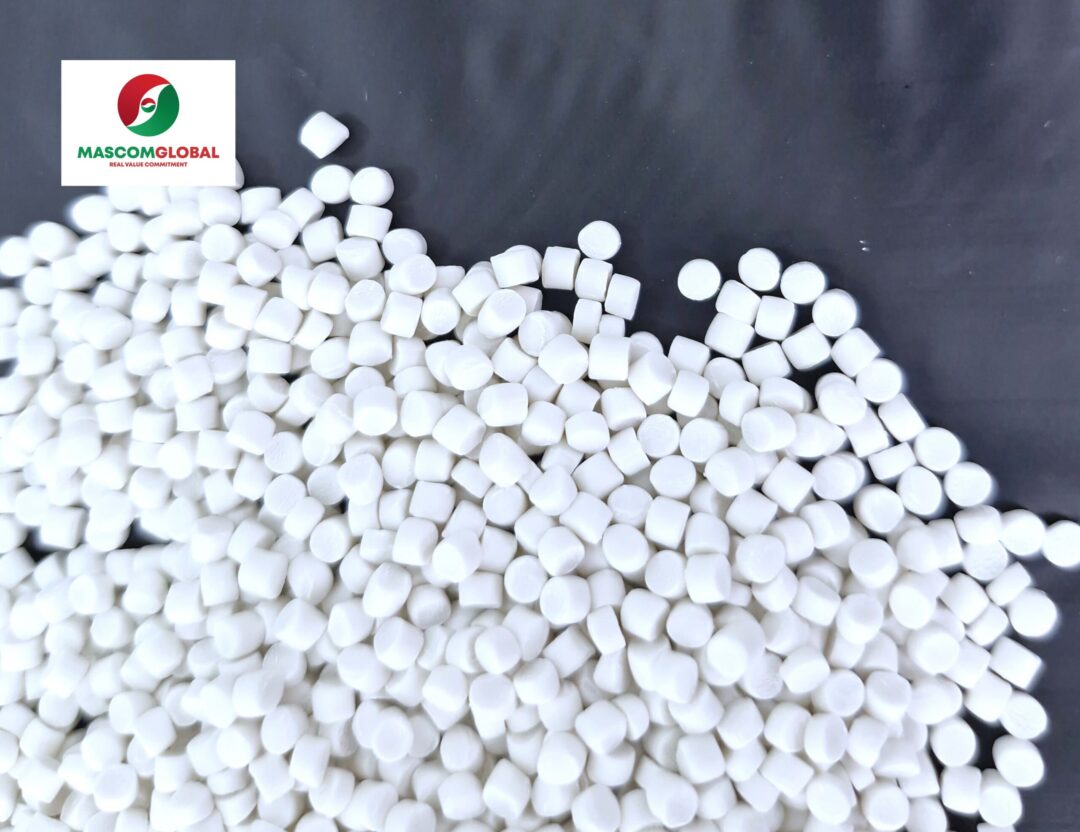

Filler Masterbatch is a cost-effective additive widely used in the plastics industry. It consists of ultra-fine calcium carbonate (CaCO₃) dispersed in polymer carriers such as PP, PE, PS, or PVC. A small amount of dispersing or coupling agents is added to improve compatibility and flow during processing.

When blended with virgin resin, Filler Masterbatch provides several notable benefits:

• 💰 Significant cost reduction:
  CaCO₃ filler replaces part of the more expensive polymer resin, lowering raw material costs without sacrificing essential properties.

• ⚙️ Enhanced stiffness and dimensional stability:
  Filler improves rigidity, reduces deformation, and helps products maintain their shape during forming and cooling.

• ⚡ Reduced shrinkage and static charge:
  This leads to smoother printing, improved handling, and better mechanical stability during production.

• 🔥 Improved thermal stability and heat dissipation:
  CaCO₃ helps distribute heat more evenly, reducing the chances of warping and ensuring consistent product quality.

• 🧪 Better processability:
  Filler can improve melt strength and extrusion smoothness in applications like blown film or sheet extrusion.


However, choosing the correct loading rate is critical. Using too little filler fails to optimize cost, while excessive usage may cause brittleness, reduced tensile strength, or compromised appearance.

2️⃣ Recommended Filler Masterbatch Ratios by Application

Below is a practical guideline for filler usage across major plastic applications. Actual ratios may vary depending on resin quality, product requirements, and machine conditions.

No.	Plastic Applications	Base Resin	Filler Masterbatch Ratio	Key Benefits
1	Blown Film (garbage bags, carry bags, shopping bags, agricultural films, industrial packaging bags, liners, etc.)	LDPE / LLDPE / HDPE	10 – 50%	Maintain flexibility, improve film drawability.
2	Pipe Extrusion	PP / PE / PVC	10 – 40%	Increase stiffness, stabilize pipe diameter.
3	Tarpaulin	HDPE	10 – 30%	Improve stiffness and dimensional stability while retaining adequate flexibility.
4	Blow Molding (bottles, cans, drums)	HDPE / PP	10 – 30%	Optimize container rigidity, reduce resin cost.
5	Injection Molding	PP / PS / HIPS	10 – 30%	Stabilize dimensions, reduce shrinkage.
6	Thermoforming	PP / PS / PET	15 – 40%	Increase stiffness, reduce deformation during forming.
7	PP Woven Sack / Raffia	PP	10 – 35%	Reduce yarn cost, increase stiffness and fabric strength.
8	Non-Woven Fabric	PP	10 – 35%	Improve surface smoothness, reduce static.
9	PVC Compound	PVC	20 – 50%	Enhance compressive strength and surface hardness.

Choosing the correct filler ratio depends on several important factors:

• Polymer Type

PP and PE generally allow higher filler loading than PET or PS due to better bonding between CaCO₃ and polyolefins.

• Mechanical and Visual Requirements

Products requiring transparency, high impact resistance, or strong tensile strength typically require lower filler ratios.

• CaCO₃ Particle Size

Ultra-fine particles (1 – 2 μm) disperse more effectively, enabling higher filler levels while maintaining good surface quality and mechanical strength.

• Machine Technology

Machines with stable temperature zones, proper screw design, and precise die control can handle higher filler content with better dispersion.

• End-use Functionality

Applications like food packaging or medical films may require stricter mechanical or safety standards, affecting allowable filler levels.

4️⃣ Mascom Global Solutions

With extensive export experience to over 30 markets, Mascom Global offers specialized filler masterbatches engineered for maximum performance:

• 🟡 PP Filler Masterbatch – optimized for woven sacks, thermoforming, and injection molding.

• 🟢 PE Filler Masterbatch – suitable for blown film, blow molding, and extrusion.

• 🔵 PVC Filler Masterbatch – ideal for pipes, profiles, and general-purpose compounds.


All Mascom products are manufactured with:

• Particle size D97 < 5 μm

• Whiteness index > 98%

• Excellent dispersion

• High thermal stability

• Controlled moisture and CO₂ content


This ensures customers can achieve high filler levels without compromising quality.

5️⃣ Practical Operation & Testing Considerations

To determine the optimal filler loading for your application, consider the following:

• Start with small steps:
  Begin with 10 – 15% loading, then gradually increase while monitoring flexibility, tensile strength, and overall performance.

• Control processing temperature:
  Excessive heat can cause yellowing or reduce gloss. Optimal temperature improves dispersion and surface quality.

• Ensure proper drying:
  Moisture in filler can cause bubbles, fish-eyes, or voids in the final product. Pre-drying improves consistency.

• Evaluate appearance and functionality:
  Look for uniform color, smooth surface, printability, and lack of haze or streaks.

• Match carrier resin with your base polymer:
  Using PP-based filler for PP and PE-based filler for PE ensures compatibility and superior bonding.


🌍 Conclusion

Choosing the appropriate Filler Masterbatch ratio is essential for balancing cost savings with product performance. When used correctly, filler masterbatch can significantly decrease production expenses while improving dimensional stability, processing efficiency, and surface properties.

At Mascom Global, we deliver not just high-quality filler masterbatch but also comprehensive technical support to help customers optimize every application — from blown film and injection molding to raffia, thermoforming, and PVC extrusion.

🌟 Mascom Global – Real Value Commitment
Contact us for detailed technical advice tailored to your production needs.
